If you’re exploring the 15 best CNC rotary axis attachments for 2026, I’ve gathered top options that combine precision, durability, and versatility. From compact jewelry engravers to robust rotary tables with stepper motors, these attachments support various materials and applications. Whether you’re into engraving, machining, or customizing cylindrical objects, there’s something for every project. Stay with me, and you’ll discover detailed insights to help you pick the perfect rotary axis for your needs.
Key Takeaways
- Overview of top CNC rotary axis attachments suitable for different applications and machine compatibilities in 2026.
- Key features include material capacity, precision, setup ease, and durability for high-quality engraving and machining.
- Selection criteria emphasize compatibility with CNC brands, motor specifications, and software integration.
- Highlights versatile options for jewelry, laser engraving, and complex workpiece shapes with advanced control features.
- Focus on materials, load capacity, and ease of installation to ensure reliable long-term performance in various CNC setups.
| CNC Rotary Table with Stepper Motor and Chuck |  | Versatile 4th Axis | Motor Type: Nema17 stepper motor | Clamping Range: 1-50mm internal, 16-50mm external | Rotation Angle: 360° | VIEW LATEST PRICE | See Our Full Breakdown |
| RATTMMOTOR D80 CNC Rotary Axis with Stepper Motor |  | Powerful Precision | Motor Type: NEMA23 stepper motor | Clamping Range: 2-22mm positive jaws, 25-70mm support | Rotation Angle: -45° to +90° | VIEW LATEST PRICE | See Our Full Breakdown |
| Rotary Attachment for CNC Router Jewelry Engraving |  | Jewelry Specialist | Motor Type: Stepper motor (unspecified model) | Clamping Range: 30mm bore diameter | Rotation Angle: 360° | VIEW LATEST PRICE | See Our Full Breakdown |
| Twotrees Rotary Roller for Engraving Cylindrical Items |  | Cylindrical Engraving | Motor Type: Nema17 stepper motor | Clamping Range: Object diameters 20-200mm | Rotation Angle: 360° | VIEW LATEST PRICE | See Our Full Breakdown |
| Genmitsu 4th Axis Rotary Module Kit for CNC Router |  | Advanced Compatibility | Motor Type: Offline control module (requires stepper motor) | Clamping Range: Material diameter 2-50mm | Rotation Angle: 360° | VIEW LATEST PRICE | See Our Full Breakdown |
| Cloudray CO2 Laser Rotary Attachment with Stepper Motor |  | High-Speed Performance | Motor Type: NEMA23 stepper motor | Clamping Range: 2-22mm support, 25-70mm support | Rotation Angle: 360° | VIEW LATEST PRICE | See Our Full Breakdown |
| CNC Rotary Axis 4th with 3-Jaw Chuck and Tailstock |  | Heavy-Duty Build | Motor Type: Nema23 hybrid stepper motor | Clamping Range: External 30-80mm, internal 2-30mm | Rotation Angle: 360° | VIEW LATEST PRICE | See Our Full Breakdown |
| CNCTOPBAOS 4-Jaw Rotary Table for CNC Engraving |  | Accurate Control | Motor Type: Nema23 stepper motor | Clamping Range: External 30-80mm, internal 2-30mm | Rotation Angle: 360° | VIEW LATEST PRICE | See Our Full Breakdown |
| NEJE R6 9-in-1 Rotary Laser Engraving Attachment |  | Compact Design | Motor Type: Stepper motor (unspecified) | Clamping Range: Up to 90mm diameter | Rotation Angle: 360° | VIEW LATEST PRICE | See Our Full Breakdown |
| NOWMORE Rotary Axis Attachment for CNC Engraving |  | User-Friendly Setup | Motor Type: Stepper motor (unspecified) | Clamping Range: 0.4-5.9 inch diameters | Rotation Angle: 360° | VIEW LATEST PRICE | See Our Full Breakdown |
| OMTech Rotary Axis for 40W CO2 Laser Engraver |  | Professional Grade | Motor Type: Nema23 stepper motor | Clamping Range: 0.8-1.6 inch diameters | Rotation Angle: 360° | VIEW LATEST PRICE | See Our Full Breakdown |
| FoxAlien R57 Y-axis Rotary Engraving Module |  | Easy Integration | Motor Type: Nema23 stepper motor | Clamping Range: Adjustable to fit various sizes | Rotation Angle: 360° | VIEW LATEST PRICE | See Our Full Breakdown |
| D69 Auto Lock Rotary Attachment for CNC Router | | Small & Precise | Motor Type: M12x1 screw (manual or motorized optional) | Clamping Range: Suitable for rings and small jewelry | Rotation Angle: 360° | VIEW LATEST PRICE | See Our Full Breakdown |
| GONGDUN Rotary Axis for Engravers and Stepper Motors |  | Robust Construction | Motor Type: Three-phase stepping motor (unspecified model) | Clamping Range: Diameter 0.0787-0.866 inches | Rotation Angle: 360° | VIEW LATEST PRICE | See Our Full Breakdown |
| OMTech Rotary Axis Attachment for Fiber Laser Engravers |  | Smart Compatibility | Motor Type: 24V stepper motor | Clamping Range: Grip objects from 0 to 90mm | Rotation Angle: 360° | VIEW LATEST PRICE | See Our Full Breakdown |
More Details on Our Top Picks
-
RATTMMOTOR D80 CNC 4th Axis Rotary Axis 129mm Center Height 3 Jaws Diameter 80mm Lathe Rotary Chuck with 57*57*76mm Stepper Motor for Fiber Laser Metal Carving Engraving Marking Machine
✅【Rotary axis parameters】Fixture: 80mm chuck rotary fixture, Connection: Direct connection, Power supply: 24V, Specification: vertical total height of...
As an affiliate, we earn on qualifying purchases.
CNC Rotary Table with Stepper Motor and Chuck
If you’re looking to enhance your CNC machine’s capabilities for complex engraving, milling, or 3D processing, the CNC Rotary Table with Stepper Motor and Chuck is an excellent choice. It serves as a precise rotational axis, perfect for 3D processing of cylinders, bends, and circles. With a compact height of just 85mm and a durable three-jaw chuck, it clamps workpieces securely within a 1-50mm range. The Nema17 stepper motor delivers accurate 0.3° steps, while the 4:1 reduction ratio ensures smooth, precise rotations. Its rust-proof finish and stable design make it reliable for demanding CNC applications, expanding your machining versatility.
- Motor Type:Nema17 stepper motor
- Clamping Range:1-50mm internal, 16-50mm external
- Rotation Angle:360°
- Compatibility:CNC milling/engraving machines
- Material Capacity:Up to 50mm diameter
- Construction Material:Steel, aluminum
- Additional Feature:Belt reduction ratio (4:1)
- Additional Feature:Adjustable tailstock stroke
- Additional Feature:Rust-proof anodized surface
-
D69 Auto Lock Rotary Attachment CNC Router Engraving Machine Rotary Axis Chuck for Ring Bracelet Jewelry Marking.(Style C Bore Dia 30)
D69 Auto Lock Rotary Attachment CNC Router Engraving Machine Rotary Axis Chuck for Ring Bracelet Jewelry Marking.
As an affiliate, we earn on qualifying purchases.
RATTMMOTOR D80 CNC Rotary Axis with Stepper Motor
The RATTMMOTOR D80 CNC Rotary Axis stands out for its robust 80mm chuck fixture, making it an excellent choice for hobbyists and professionals who need precise, stable rotation in their machining projects. Its compact dimensions (228*120*167mm) and 250mm total height offer versatility for various setups. Powered by a powerful NEMA23 stepper motor with 2.3Nm torque, it delivers low-noise operation and reliable performance. The chuck, made of high-quality alloy and stainless steel, ensures stable rotation and accurate positioning. With a versatile pitch angle of -45° to +90°, this rotary axis is perfect for fiber laser, metal carving, and engraving tasks, enhancing efficiency and precision.
- Motor Type:NEMA23 stepper motor
- Clamping Range:2-22mm positive jaws, 25-70mm support
- Rotation Angle:-45° to +90°
- Compatibility:Most CNC/laser engravers with NEMA23 motors
- Material Capacity:2-22mm positive jaws, 25-70mm support
- Construction Material:Alloy, stainless steel
- Additional Feature:1:1 gear ratio
- Additional Feature:Support for positive/reverse jaws
- Additional Feature:High-precision collet included
-
Twotrees Rotary Roller Y Axis Rotary Roller Engraving Module for Engraving Cylindrical Items, 360° Rotating Engraving, Compatible with Most Engraver
Material: Twotrees rotary roller is made of T slot 2020 aluminum extrusion and sturdy 4.5mm thick plexiglass (Blue...
As an affiliate, we earn on qualifying purchases.
Rotary Attachment for CNC Router Jewelry Engraving
For jewelry engravers seeking precise and secure rotary movement, the D69 Auto Lock Rotary Attachment stands out as an excellent choice. Its compact design measures just 0.39 inches on each side and weighs only 1.76 ounces, making it easy to handle. The auto-lock mechanism guarantees a firm grip during detailed engraving on rings, bracelets, and other jewelry pieces. With a 30mm bore diameter, it’s compatible with various CNC routers. This attachment simplifies jewelry engraving tasks, providing accuracy and stability. Perfect for professionals and hobbyists alike, it helps achieve intricate designs efficiently, all while maintaining a small footprint and ease of use.
- Motor Type:Stepper motor (unspecified model)
- Clamping Range:30mm bore diameter
- Rotation Angle:360°
- Compatibility:CNC routers, engraving machines
- Material Capacity:Small objects, rings, jewelry
- Construction Material:Aluminum alloy
- Additional Feature:Auto-lock mechanism
- Additional Feature:Compact size (0.39 inches)
- Additional Feature:Suitable for small objects
Twotrees Rotary Roller for Engraving Cylindrical Items
Designed for users seeking precise cylindrical engraving, the Twotrees Rotary Roller offers 360° rotation with adjustable spacing, making it ideal for creating detailed designs on glasses, cups, and cans. Its sturdy construction features T-slot 2020 aluminum extrusion and a transparent blue plexiglass cover, ensuring durability and visibility. The Nema 17 stepper motor provides reliable torque for smooth operation. It supports five roller positions spaced at 15mm intervals, accommodating objects from 20mm to 200mm in diameter and up to 200mm in length. With adjustable roller spacing between 20mm and 90mm, it’s versatile and compatible with most engravers using Nema 17 motors, working seamlessly with popular software like Lightburn and LaserGRBL.
- Motor Type:Nema17 stepper motor
- Clamping Range:Object diameters 20-200mm
- Rotation Angle:360°
- Compatibility:Most laser engravers with Nema17 motors
- Material Capacity:Up to 200mm length, 20-200mm diameter
- Construction Material:Aluminum extrusion, plexiglass
- Additional Feature:Supports 5 roller positions
- Additional Feature:Adjustable roller spacing
- Additional Feature:Compatible with laser software
Genmitsu 4th Axis Rotary Module Kit for CNC Router
If you’re looking to expand your CNC router’s capabilities, the Genmitsu 4th Axis Rotary Module Kit stands out as an excellent choice for tackling complex, multi-angle projects. This kit adds a 4th axis for full 3D rotary carving, allowing you to create intricate curved and angled parts that aren’t possible with standard 3-axis setups. It’s compatible with software like Fusion 360 or Vectric, which generate rotary toolpaths. The kit includes an offline control module for seamless G-code transmission, ensuring smooth operation. With versatile dimensions and material compatibility, it’s perfect for a wide range of projects, enhancing your creative possibilities considerably.
- Motor Type:Offline control module (requires stepper motor)
- Clamping Range:Material diameter 2-50mm
- Rotation Angle:360°
- Compatibility:Genmitsu 4040-PRO CNC router; requires offline controller
- Material Capacity:2-50mm diameter
- Construction Material:Cast aluminum, steel components
- Additional Feature:Offline control module included
- Additional Feature:Wide material diameter range
- Additional Feature:Compatible with CAD/CAM software
Cloudray CO2 Laser Rotary Attachment with Stepper Motor
The Cloudray CO2 Laser Rotary Attachment with Stepper Motor stands out for its high-speed, precise engraving capabilities, making it an excellent choice for both hobbyists and professionals seeking reliable performance. Its 2-axis rotary system, powered by a Nema 23 stepper motor, ensures smooth, accurate control with minimal step loss. The pre-assembled, modular design simplifies setup, while the stable tailstock and non-slip rubber ring provide stability and quiet operation. Compatible with various shapes, including cylinders and irregular objects, it’s perfect for detailed engraving on bottles, eggs, and more. Overall, it combines efficiency, ease of use, and versatility for a wide range of laser engraving projects.
- Motor Type:NEMA23 stepper motor
- Clamping Range:2-22mm support, 25-70mm support
- Rotation Angle:360°
- Compatibility:FoxAlien 4040-XE CNC router and other NEMA23 compatible
- Material Capacity:2-22mm, 25-70mm support
- Construction Material:Aluminum alloy, steel
- Additional Feature:Closed-loop control system
- Additional Feature:Modular pre-assembled design
- Additional Feature:Supports irregular shapes
CNC Rotary Axis 4th with 3-Jaw Chuck and Tailstock
For those seeking precise and versatile rotary positioning on their CNC machines, the CNC Rotary Axis 4th with a 3-jaw chuck and tailstock is an excellent choice. It features a self-centering 3-jaw chuck capable of handling external and internal clamping ranges, ideal for complex shapes like cylinders and bends. Built from durable aluminum alloy, it offers stability, with a height of 65mm and a total height of 115mm. The tailstock’s movable live center provides extra support, while the stepper motor ensures accurate control at up to 3500 rpm. This setup enhances machining precision and long-term durability across engraving, milling, and carving projects.
- Motor Type:Nema23 hybrid stepper motor
- Clamping Range:External 30-80mm, internal 2-30mm
- Rotation Angle:360°
- Compatibility:CNC routers, lathes, engraving/milling machines
- Material Capacity:30-80mm external, 2-30mm internal
- Construction Material:Aluminum alloy, wear-resistant components
- Additional Feature:Hollow shaft (22mm)
- Additional Feature:High torque (60 N·m)
- Additional Feature:Aluminum alloy construction
CNCTOPBAOS 4-Jaw Rotary Table for CNC Engraving
Engineers and hobbyists seeking precision in CNC engraving will find the CNCTOPBAOS 4-Jaw Rotary Table an excellent choice, thanks to its high-accuracy stepper motor and robust construction. Its Nema23 hybrid stepper motor offers precise control with a 1.8° step angle and 270oz-in torque, ensuring accurate rotations. The aluminum alloy base provides stability and wear resistance, while the hollow shaft allows versatile mounting. The 6:1 reduction ratio and 0.3° per step enable fine angular adjustments. Designed for complex 3D engraving, it’s perfect for processing cylinders, spirals, and intricate patterns, notably expanding your CNC machine’s capabilities.
- Motor Type:Nema23 stepper motor
- Clamping Range:External 30-80mm, internal 2-30mm
- Rotation Angle:360°
- Compatibility:CNC engravers with NEMA23 motors
- Material Capacity:30-80mm external, 2-30mm internal
- Construction Material:Aluminum alloy, steel
- Additional Feature:Precise 0.3° step angle
- Additional Feature:Internal jamming range (30-90mm)
- Additional Feature:M12x1 locking screw

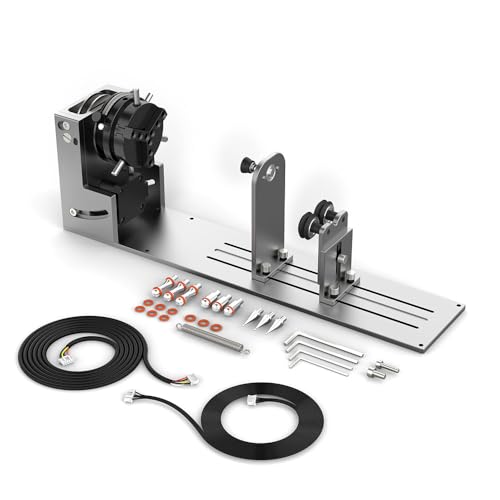

NEJE R6 9-in-1 Rotary Laser Engraving Attachment
If you’re seeking a versatile rotary attachment that delivers micron-level precision for laser engraving, the NEJE R6 9-in-1 Rotary Laser Engraving Attachment stands out as an excellent choice. Designed for compatibility with NEJE laser engravers, it features a 1:5 scaling ratio, allowing you to engrave cylindrical objects up to 200mm, like cups. Made with durable stainless steel, it offers stable, high-quality engravings. Its quick, single-hand clamp and 90° rotatable arm enhance operational flexibility. Customer reviews are highly positive, averaging 4.5 stars. Overall, this device combines precision, durability, and ease of use, making it a top pick for detailed rotary laser engraving projects.
- Motor Type:Stepper motor (unspecified)
- Clamping Range:Up to 90mm diameter
- Rotation Angle:360°
- Compatibility:Compatible with NEJE laser engravers
- Material Capacity:Up to 90mm diameter
- Construction Material:Steel, stainless steel
- Additional Feature:1:5 scaling ratio
- Additional Feature:Quick clamp system
- Additional Feature:90° rotatable angle
NOWMORE Rotary Axis Attachment for CNC Engraving
The NOWMORE Rotary Axis Attachment stands out as an excellent choice for those seeking high-precision cylindrical engraving. It features a 2-phase stepper motor that offers adjustable speeds from 10 to 200 RPM, ensuring smooth, accurate 360° rotations. The roller-based design allows seamless engraving on bottles, cups, and tubes with diameters from 0.4 to 5.9 inches and lengths up to 13.78 inches. Made from durable aluminum alloy and steel with an anodized finish, it’s built to last. The adjustable height and easy plug-and-play setup make it versatile and compatible with various CO2 laser engravers, boosting your engraving precision and efficiency.
- Motor Type:Stepper motor (unspecified)
- Clamping Range:0.4-5.9 inch diameters
- Rotation Angle:360°
- Compatibility:CO2 laser engravers (50W-130W)
- Material Capacity:0.4-5.9 inch diameter
- Construction Material:Aluminum alloy, steel
- Additional Feature:Adjustable height (3.15-5.12″)
- Additional Feature:Supports up to 5.9″ diameter
- Additional Feature:Rubber anti-slip pads
OMTech Rotary Axis for 40W CO2 Laser Engraver
Looking to add precise 360° engraving capabilities to your 40W CO2 laser engraver? The OMTech Rotary Axis Attachment is perfect for cylindrical objects like cups, bottles, and bowls. It easily fits with laser engravers of 40W or higher, offering adjustable rollers that handle objects from 0.8 to 1.6 inches in diameter. The precision-engineered tailstock guarantees smooth, noise-free operation, making your engravings seamless. Setup is straightforward—just connect the 4-wire cable and configure your software. Backed by a 1-year warranty and friendly support, this attachment provides reliable, versatile performance for DIY, home, or industrial projects.
- Motor Type:Nema23 stepper motor
- Clamping Range:0.8-1.6 inch diameters
- Rotation Angle:360°
- Compatibility:40W+ laser engravers
- Material Capacity:0.8-1.6 inch diameter
- Construction Material:Cast aluminum, steel
- Additional Feature:Max diameter 1.6 inches
- Additional Feature:Precise tailstock
- Additional Feature:1-year warranty
FoxAlien R57 Y-axis Rotary Engraving Module
Engineered for precision engraving on curved surfaces, the FoxAlien R57 Y-axis Rotary Engraving Module stands out as an essential accessory for those working with cylindrical objects like cups, bottles, and glassware. Compatible with FoxAlien 4040-XE CNC routers and other machines with NEMA23 stepper motors, it easily adapts to various sizes thanks to adjustable roller widths and a versatile support bracket. The fully assembled roller features straightforward wiring and comes with a detailed manual, making setup simple. Weighing just over 2 pounds, it offers stability and ease of use, making it a popular choice for detailed engraving on rounded items.
- Motor Type:Nema23 stepper motor
- Clamping Range:Adjustable to fit various sizes
- Rotation Angle:360°
- Compatibility:Most engraving/cutting machines with NEMA23
- Material Capacity:Variable, depending on setup
- Construction Material:Aluminum alloy, steel
- Additional Feature:Support for adjustable roller width
- Additional Feature:Includes two rollers
- Additional Feature:Compatible with NEMA23 motors
D69 Auto Lock Rotary Attachment for CNC Router
Are you searching for a reliable rotary attachment that guarantees precise jewelry engraving? The D69 Auto Lock Rotary Attachment is exactly what you need. It features an automatic locking mechanism, ensuring secure attachment during detailed work on rings, bracelets, or other jewelry pieces. Its compact size (0.39 inches on each side) and lightweight design (just 1.76 ounces) make it easy to handle and install. Compatible with standard CNC router configurations, it’s perfect for professional jewelers and hobbyists alike. Manufactured by ALFJGWA, this attachment offers stability and precision, enhancing your CNC router’s capabilities for intricate jewelry engraving projects.
- Motor Type:M12x1 screw (manual or motorized optional)
- Clamping Range:Suitable for rings and small jewelry
- Rotation Angle:360°
- Compatibility:CNC routers, jewelry engraving machines
- Material Capacity:Small jewelry pieces, rings
- Construction Material:Aluminum alloy, steel
- Additional Feature:Compact (0.39 inches)
- Additional Feature:M12x1 screw fitting
- Additional Feature:Suitable for jewelry marking
GONGDUN Rotary Axis for Engravers and Stepper Motors
The GONGDUN Rotary Axis stands out for those seeking precise, high-concentricity rotation in their engraving projects. Made from durable aluminum alloy and steel, it features anodizing and chamfering for strength and aesthetics. Its three-phase stepping motor can reach speeds up to 4000rpm with torque ≥ 780mn, ensuring smooth, accurate 360° bi-directional engraving on cylindrical objects. Compatible with laser engravers of 50W or higher, it handles workpieces from 0.0787 to 0.866 inches in diameter, up to 2.76 inches max. The sturdy three-jaw chuck, heat-sink design, and simple setup make it ideal for detailed, reliable engraving on various materials.
- Motor Type:Three-phase stepping motor (unspecified model)
- Clamping Range:Diameter 0.0787-0.866 inches
- Rotation Angle:360°
- Compatibility:Laser engravers of 50W or higher
- Material Capacity:0.0787-0.866 inch diameter
- Construction Material:Aluminum alloy, steel
- Additional Feature:Heat dissipation holes
- Additional Feature:3-phase stepper motor
- Additional Feature:Max diameter 2.76 inches
OMTech Rotary Axis Attachment for Fiber Laser Engravers
If you’re looking to add precise 360° engraving capabilities to your fiber laser engraver, the OMTech Rotary Axis Attachment is an excellent choice. It enables engraving on cylindrical objects like rings, bottles, and tubes with ease. Connecting via a 4-pin aviation plug, it’s compatible with various laser machines and simple to set up. The 70mm rotary chuck with adjustable jaws securely grips items from 0 to 90 mm. Powered by a reliable 24V stepper motor, it offers smooth, stable rotation for detailed designs. Made from durable cast aluminum, it’s built to last and perfect for both hobbyist and industrial use.
- Motor Type:24V stepper motor
- Clamping Range:Grip objects from 0 to 90mm
- Rotation Angle:360°
- Compatibility:Compatible with fiber laser engravers
- Material Capacity:0-90mm diameter
- Construction Material:Cast aluminum, steel
- Additional Feature:70mm adjustable jaws
- Additional Feature:Heavy-duty cast aluminum
- Additional Feature:24V stepper motor
Factors to Consider When Choosing a CNC Rotary Axis Attachment
When selecting a CNC rotary axis attachment, I focus on how well it fits my machine and the level of precision it offers. I also consider its capacity to handle different materials and how easy it is to install. Finally, durability and material quality are key to ensuring long-term performance.
Compatibility With Machines
Choosing a CNC rotary axis attachment requires careful attention to compatibility to guarantee smooth integration and ideal performance. First, I verify that the attachment matches my CNC machine’s brand, model, and control system to prevent connection issues. I also check if the mounting interface and dimensions align with my machine’s specifications, ensuring a secure fit. Supporting the correct spindle or motor connections is essential for proper operation, so I confirm these are compatible with my setup. Additionally, I review the maximum workpiece diameter and weight capacity to meet my project requirements. Finally, I ensure the software can seamlessly integrate with my existing CNC control system, avoiding any compatibility hurdles during operation. Proper compatibility guarantees a smooth, reliable performance.
Precision And Accuracy
Selecting a CNC rotary axis attachment hinges on its ability to deliver high precision and accuracy. I look for a small step angle, like 0.3°, which offers finer control and detail. Consistent clamping force and proper alignment are vital, preventing deviations during rotation that can affect engraving or machining quality. The reduction ratio also matters—higher ratios provide more precise control over rotation angles. The quality of the stepper motor, including torque and step resolution, directly impacts the attachment’s ability to handle delicate or complex tasks. Finally, proper calibration and software settings are essential; even minor misalignments can reduce accuracy. By considering these factors, I guarantee the rotary axis attachment meets my precision needs and delivers consistent, high-quality results.
Material Handling Capacity
The material handling capacity of a CNC rotary axis attachment is essential for ensuring it can securely hold and manage your workpieces. I always check that the chuck or clamp can handle the maximum diameter and weight of my materials to prevent slippage or damage. It’s important to verify the maximum workpiece size supported so I don’t overload the device during operation. I also review the load capacity and torque specs to match the size and density of my projects, ensuring smooth handling. Compatibility with my machine’s motor power and control system is vital for reliable performance. Finally, I consider whether the attachment can accommodate various shapes and sizes, including irregular or elongated objects, to maximize versatility in my material processing.
Ease Of Installation
When evaluating a CNC rotary axis attachment, ease of installation can make a significant difference in how smoothly your setup process goes. I look for units that come pre-assembled, saving me time and effort. Connections via standard cables, like 4-wire or aviation plugs, also simplify wiring and reduce setup headaches. Compatibility with my CNC machine’s mounting system is vital—no modifications needed means less frustration. Clear, detailed manuals or setup guides are essential, helping me install everything correctly the first time. Features like auto-lock mechanisms or quick-release clamps can further streamline the process, making adjustments quick and hassle-free. Overall, choosing an attachment that’s straightforward to install minimizes downtime and gets me up and running faster.
Durability And Material
Durability is vital when choosing a CNC rotary axis attachment because it directly impacts the tool’s longevity and performance. High-quality materials like aluminum alloy, stainless steel, and cast iron are key, as they resist wear and corrosion. The thickness of these materials and the construction methods, such as anodizing or applying protective coatings, further strengthen the attachment and extend its lifespan. Steel components, especially in the chuck and gear mechanisms, provide extra resilience for high-torque use and repeated operation. Corrosion-resistant finishes are essential for working in humid or harsh environments, preventing rust and deterioration. Ultimately, selecting sturdy, wear-resistant materials ensures stable rotation, precise positioning, and reduces the risk of mechanical failure over time, keeping your investment reliable and long-lasting.
Frequently Asked Questions
How Do I Install a Rotary Axis Attachment on My CNC Machine?
To install a rotary axis attachment on my CNC machine, I first check the compatibility and gather the necessary tools. I carefully mount the attachment onto the designated spindle or worktable, ensuring it’s securely fastened. Then, I connect the wiring or control cables, following the manufacturer’s instructions. Afterward, I calibrate the axis in the software, verifying smooth movement. Finally, I run a test to confirm everything functions correctly before starting my project.
What Maintenance Is Required for Rotary Axis Attachments?
To keep your rotary axis attachment in top shape, I recommend regular lubrication of moving parts and checking for any debris or dust buildup. I also inspect the bearings and connections for wear or looseness, tightening or replacing components as needed. Additionally, I calibrate the axis periodically to ensure precision. Cleaning the attachment after each use prevents corrosion and prolongs its lifespan, ensuring smooth and accurate operation every time.
Can Rotary Axes Be Used With Different CNC Machine Brands?
Absolutely, rotary axes can dance with different CNC machine brands—if you’re willing to embrace the chaos. While some adapters and custom mounts might be needed, most rotary axes are designed with versatility in mind. Just keep in mind that compatibility isn’t always seamless; you’ll likely need to tweak settings or acquire specific software updates. So, yes, your rotary axis can mingle across brands—if you’re ready for a bit of technical tango.
What Safety Precautions Should I Follow When Operating Rotary Attachments?
When operating rotary attachments, I always wear proper safety gear like goggles and gloves to protect myself. I make sure the machine is turned off before installing or adjusting the attachment. I also double-check that everything is securely fastened and that the workpiece is stable. Staying focused, avoiding distractions, and following the manufacturer’s safety instructions are key to preventing accidents and ensuring a safe working environment.
How Do Rotary Axes Impact Engraving Precision and Quality?
Rotary axes considerably improve engraving precision and quality by allowing me to work on complex, cylindrical, or three-dimensional surfaces with greater accuracy. They enable smooth, consistent rotations, reducing errors and ensuring detailed, professional results. I find that using a rotary axis also minimizes manual adjustments, saving time and enhancing consistency across multiple pieces. Overall, they elevate the accuracy and detail of my engravings, making my work stand out.
Conclusion
So there you have it—your ticket to turning a humble CNC into a spinning wonder, or at least pretending you know what you’re doing. Whether you pick a budget-friendly gem or splurge on top-tier tech, remember, the real magic isn’t in the attachment but in your ability to pretend you understand it. Happy spinning, and may your projects be as flawless as your newfound rotary expertise—at least until the next upgrade.
